Overview

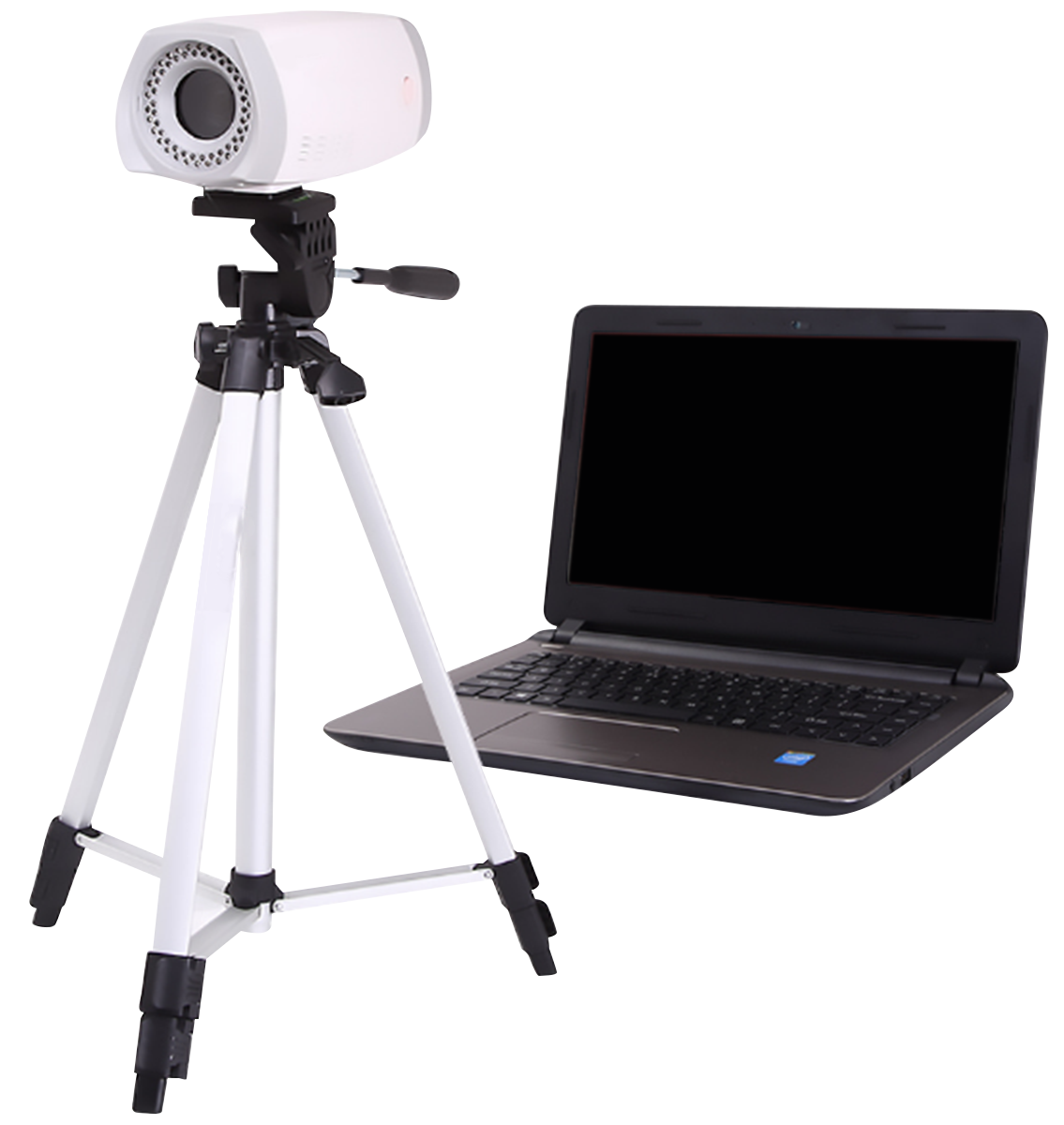

Video Colposcope KVC-A100 is a standalone portable high-resolution video imaging system. White multi-point LED ring ensures superior brightness and spot-on illumination. High performance CCD camera enables dynamic capture ensuring superior clarity and image quality. Tripod stand maximizes floor space for ease of access.

Specifications :

Image Sensor	1/4″ Super HAD color CCD
CCD Resolution (HD optional)	8,00,000 pixels
Horizontal Resolution	≥ 470 TV lines
Magnification	Optical : 10 x to 60 x Digital : Up to 128 x
Light Source	Halogen cold light source with bright White multi-point LED ring
Image Processing	Marking, Measurement and Image magnification
Image Display System	Color LCD monitor or Laptop with full-screen display
Image Navigation and Management	Image review (cases and statistics), Image Freeze, Image Collection
Depth of Field	15 mm ~ 40 mm 15 mm ~ 480 mm
Focal Distance	Standard: 100 mm ~ 400 mm Support: 10 mm ~ 1000 mm
Luminosity	0.15 lux
Focal Control Method	Auto/manual
Signal noise ratio (SNR)	≥ 50 dB
Ambient Temperature	- 40°C to 50°C
Storage Temperature	- 20°C to 60°C
Relative Humidity	30 % ~ 80 %
LED Lifetime	1,00,000 hours
Memory	Large storage memory (1 million cases can be stored)
Video Compatibility	Video, S-video, PAL (VBS-standard 1.0 Vp-p)
Power Rating	500 W
Power Supply	AC 220 V ± 10 %
Dimensions	570 x 420 x 400 mm
Weight	1.4 Kgs



Features :

• Advanced image processing technology
• Electronic green filter design
• Ring fiber lens optical illumination
• Adjustable vertical tripod

Applications :

Used in gynecology department in hospitals, diagnostic centers and primary healthcare centre for colposcopy exams, cervical cancer screenings, as well as sexual assault examinations for enhanced imaging and documentation.
