Overview

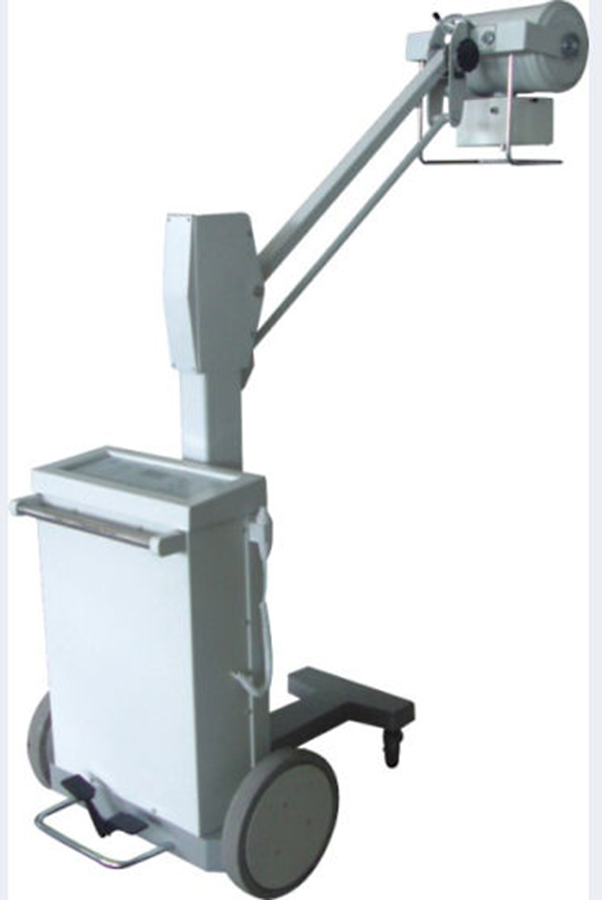

Mobile X-ray machine KMX-A101 is an advanced X-ray imaging modality designed to be highly efficient and portable medical imaging solution for intra-departmental transport. Equipped with single focus full wave rectification for stable and precise-controlled operation. Accurate X-ray beam focusing results in dose-efficient X-ray and enhances image quality. Equipped with high voltage protection circuit for user as well as patient.

Specifications :

Focal Distance	350 x 350 mm
Source Head Range	520 mm - 1880 mm
Exposure DC Voltage	100 kV ; 50 kV - 100 kV
Exposure DC Current	35 A (instant)
Exposure Time	0.08 s - 6.32 s
Tube Focus	4.3 x 4.3 mm
Collimator Film (max)	650 mm
Spot-film Tube Current	150 mA (fixed)
Column Angular Range	±45°
Spot Focus	16 mA, 32mA, 63mA, 100mA
Power Supply	Voltage : 180 V - 240 V Frequency : 50 Hz
Dimensions	1500 x 800 x 1500 mm
Weight	150 Kgs



Features :

• Standard frequency X-ray generator
• High quality imaging
• SCM control technology
• 8 Pre-defined exposure control
• High voltage SCR safety circuit
• Cantilever head source structure

Applications :

Used throughout the hospital from in-patient, to NICU, operating room, and emergency room as well as polyclinics to perform projection radiography readily on bedbound or critical patients for convenience.
