Overview

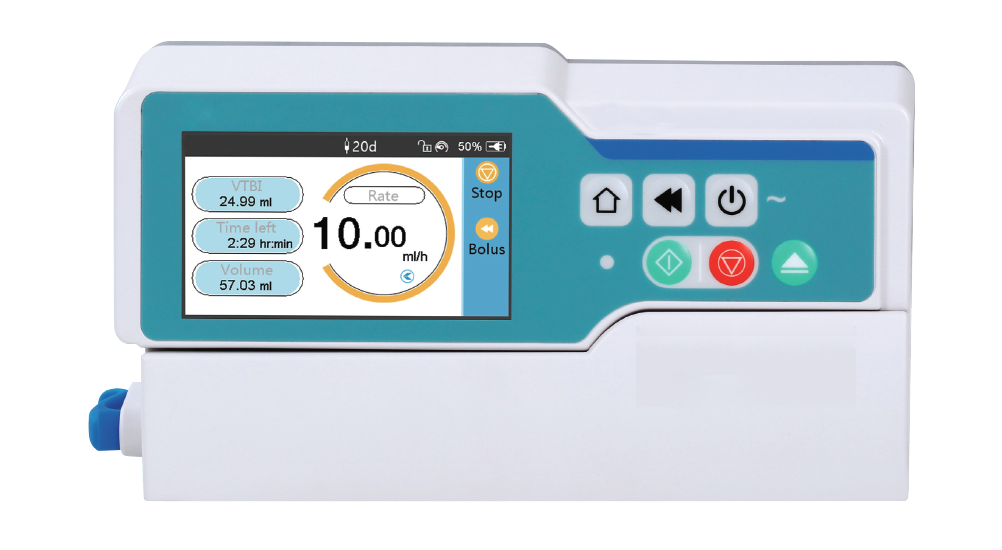

Infusion Pump KIP–A101 is a single-channel light–weight, drip-type volumetric fluid delivery system. Built-in pressure sensor system reduces false alarm. Infusion driver accurately delivers infusion rate and monitors infusion therapy. Backlit display enables suitably ambient illumination to operate even at low light condition. Smooth dustproof exterior design allows easy maintenance.

Specifications :

Channel	Single channel infusion
Infusion Volume	0 ml ~ 9999 ml ( 0.1ml increment)
Infusion Rate	0.01 ml/h ~ 1200 ml/h (0.01ml/h increment)
KVO Rate	0.01 ml/h – 5 ml/h
Occlusion	4 selectable levels of occlusion
Accuracy	±5%
Infusion Modes	Rate mode, Time mode, Body weight, Drip mode, Micro mode
Drop Rate	1 drop/min ~ 400 drops/min (1 drop/min increment)
Purge	Available
Bolus	0.1 ml/h ~1200 ml/h (auto & manual bolus control)
Therapy Timer Range	1 min ~ 9999 min ( 1 min increment)
Display	4.3-inch colour LCD with backlight
Drug Library	Database of up to 30 drugs
Memory	Up to 5000 record entries
Safety	Class I, CF
Moisture Protection	IP24
Stand by	00 mins – 99 h 59 mins
Free-flow Protection	Anti-free flow safeguard clip lock system
Power Supply	AC: 110 V ~ 240 V, 50 Hz / 60 Hz, DC: 12 V
Battery	11.1 V rechargeable Li-ion battery; > 2600 mAh Works more than 9 hours at 25 ml/h after charging for 5 hours
Dimensions	235 x 95 x 120 mm
Weight	1.6 Kg



Features :

• Built-in drug database library
• Up-stream & Down-stream pressure sensor
• Electric anti-free flow clamp
• Vertically stackable to save storage space
• Suitable for all brands of IV set
• Alarm: Infusion complete, Pressure, Upstream pressure, Battery status, KVO finished, Clip-lock open, Air bubble, Infusion near end, Battery low, Power fail, Drop sensor connection, System fail

Applications :

Used in general ward, ICU in hospital to gradually administer intra-venous fluid drug dosage at a predetermined rate through syringe for consistent and effective infusion therapy.
