Overview

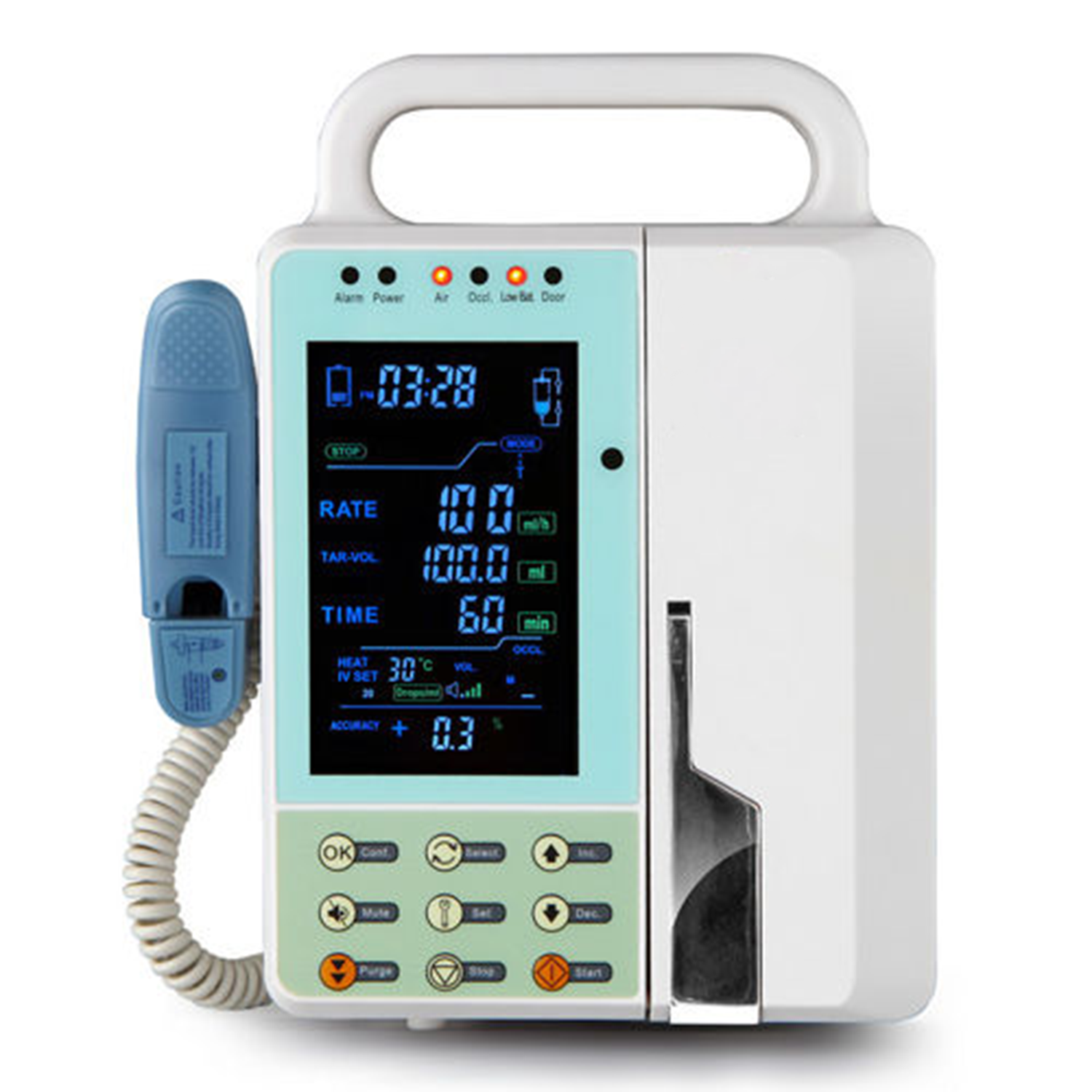

Infusion Pump KIP–A100 is a single-channel light–weight, drip-type volumetric fluid delivery system. Digitally driven fluid-control, automated calibration and dose titration enhances safety. Peristaltic pumping mechanism ensures precise flow-measurement and prevents back-flow of IV fluid. Backlit display enables suitably ambient illumination to operate even at low light condition.

Specifications :

Channel	Single channel infusion
Volume (VTBI)	1 ml ~ 9999.9 ml ( 0.1 ml increment)
Accuracy	Flow rate: ≤ ± 3 % Mechanical: ≤ ± 2 %
KVO Rate	1 ml/h (1 ml/h ~ 300 ml/h) 3 ml/h (greater than 300 ml/h)
Occlusion System	3 selectable occlusion levels
Drop Rate	1 drop/min ~ 400 drops/min (1 drop/min increment)
Infusion Rate	1.0 ml/h ~99.9 ml/h (0.1 ml/h increment) 100 ml/h ~1200 ml/h (1 ml/h increment)
Purge	800 ml/h
Bolus	10 ml/h ~ 1200 ml/h at 0.1 ml/h (flow rate < 100 ml/h) 10 ml/h ~ 1200 ml/h at 1 ml/h (flow rate > 100 ml/h)
Therapy Timer Range	1 min ~ 9999 min ( 1 min increment)
Display	4.3-inch colour LCD with backlight
Drug Library	Database of up to 210 drugs
Memory	Up to 1500 record entries
Occlusion Threshold	High: 800 mmHg ± 200 mmHg (106.7 kPa ± 26.7 kPa) Medium: 500 mmHg ± 100 mmHg (66.7 kPa ± 13.3 kPa) Low: 300 mmHg ± 100 mmHg (40.7 kPa ± 13.3 kPa)
Sensitivity [Bubble detection]	> 25 μL
Environmental Condition : Operation	Operating temperature 5 ⁰C ~ 40 ⁰C Operating humidity 20 % ~ 90 %
Environmental Condition: Storage	Storage temperature -10 ⁰C ~ 55 ⁰C Storage humidity 10 % ~ 90 %
Fuse	F1AL / 250 V
Power Supply	AC 85 ~ 265 V, 50/60 Hz, < 40 VA
Battery	11.1 V rechargeable Li-ion battery; > 2000 mAh Works more than 4 hours at 25 ml/h after charging for 8 hours
Dimensions	188 x 198 x 228 mm
Weight	2.5 Kgs



Features :

• Infusion Modes - Rate mode, Time mode, Volume mode
• Automated calibration
• Provision for infusion fluid warming
• Built-in drug database library
• Suitable for all brands of IV set
• Alarm: Infusion Complete, Occlusion, Door Open, Air Bubble,
• Low Battery, Setting Error, Power failure, Stand-by

Applications :

Used in general ward, ICU in hospital to gradually administer intra-venous fluid drug dosage at a predetermined rate through syringe for consistent and effective infusion therapy.
