Overview

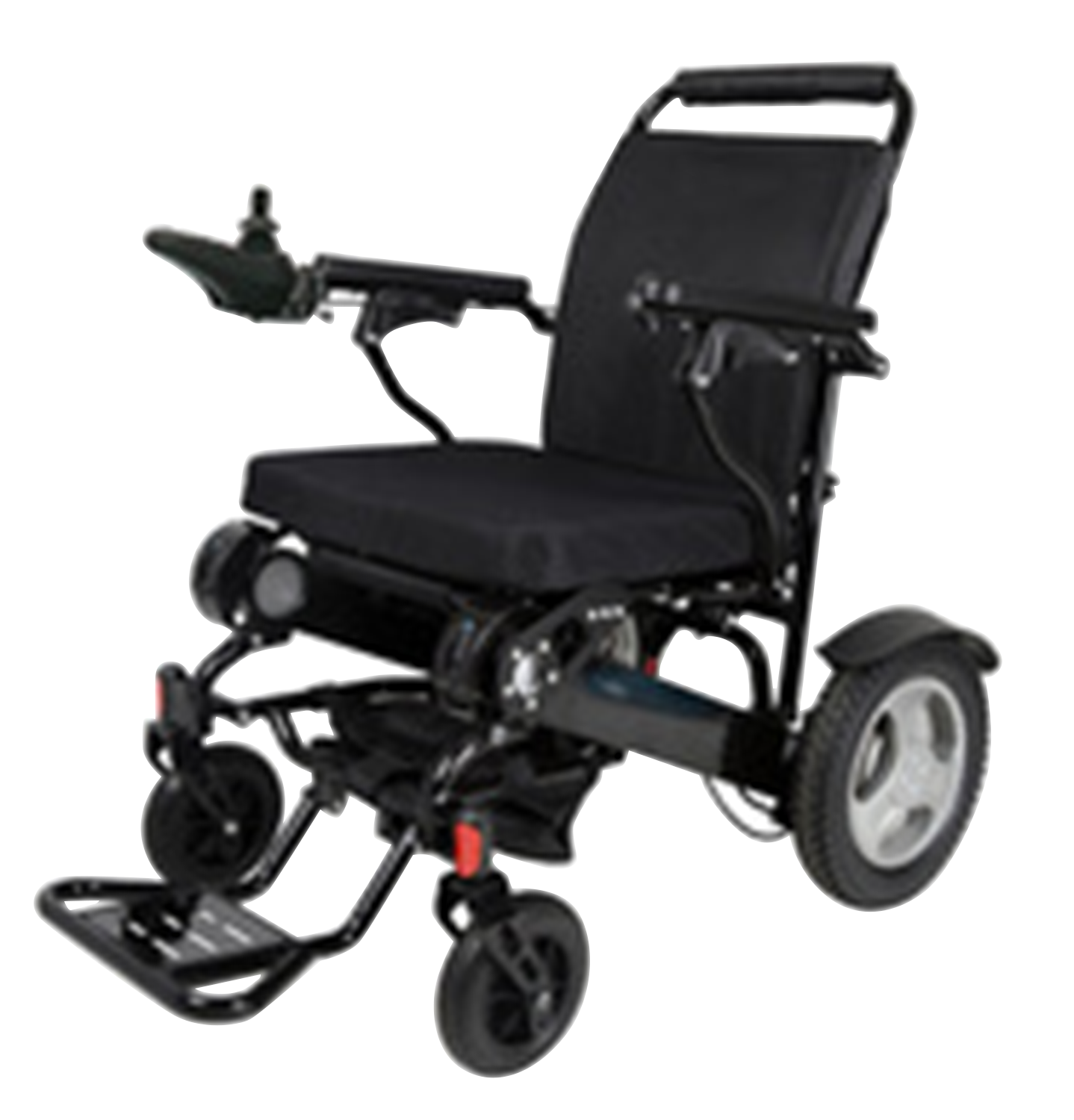

KFW-A101 is foldable and portable electrically-powered wheelchair easy to carry along and store for travel. Features detachable and washable seat cushion and backrest and flipping foot pedal. Wheelchair incorporates powerful motors responsible to easily operate wheelchair controller for user comfort.

Specifications :

Motor	250 W brushless
Max speed	6 Km/hr
Fold size	580 × 325 × 780 mm
Driving distance	25 Km
Seat height	460 mm
Seat width	480 mm
Controller	24 V / 2 A
Grade ability	8 – 12 °
Seat depth	430 mm
Back seat height	480 mm
Armrest height	250 mm
Backrest height	400 mm
Foot rest height	120 mm
Charging time	6 – 8 hour
Max load capacity	180 Kgs
Battery	24 V / 6 Ah
Dimension	960 × 580 × 930 mm
Net weight	28 Kgs (with 2 battery)



Features :

• Portable and foldable electric wheel chair
• Dual motorized operation
• Aluminum alloy frame
• Detachable and washable seat cushion and backrest
• Flipping foot pedal
• Stable and durable black metal hub
• Safe electromagnetic brake
• Lithium battery and battery indicator

Applications :

Used in Hospitals and at Home for geriatric patient. Easily portable because of its folding nature.
