Overview

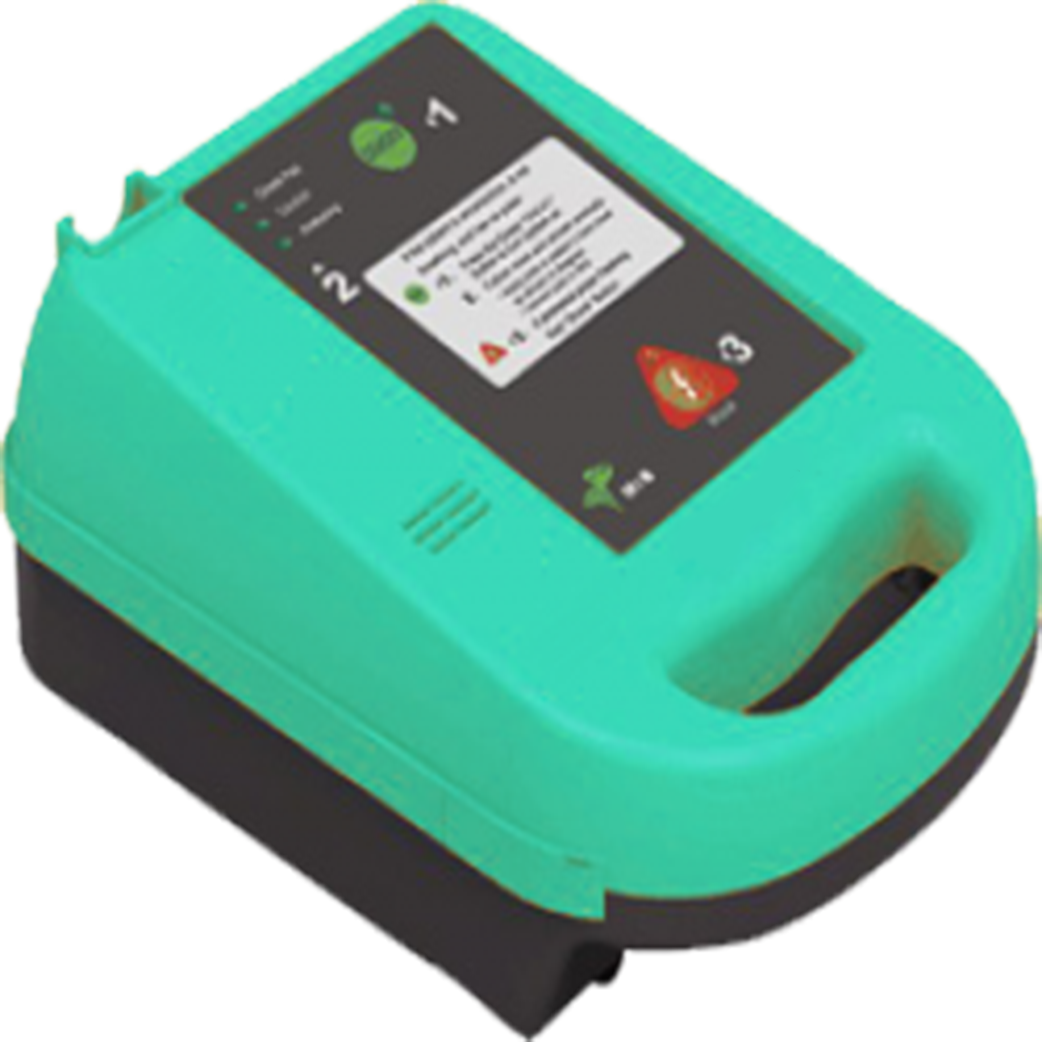

Automated External Defibrillator KED-A100 is a biphasic portable semi-automated public access defibrillation device. System incorporates advanced cardiac life-support features which include step-by-step voice instructions from pad placement to shock delivery with clear visual real-time guidance indicators as well as electrode position analysis for safe and quick treatment aid during cardiac emergency suitable to use for on-the-spot responders with or without training.

Specifications :

Waveform	Biphasic
Energy Sequence	150 J, 200 J
Analysis Time	9 seconds
Audio Indications	20 distinct voice instructions
Charge Time	8 seconds for 150 J 10 seconds for 200 J
Capacity	100 discharges (200 J) 120 discharges (150 J)
Rhythm Analysis Time	Less than 30 secs for new battery Less than 35 secs after 6 shock discharge Less than 25 secs at initial switch-on
Visual Indications	LED flash light indicator
Control Keys	Shock and On/Off keys
Energy Accuracy	± 15 % tolerance (25 Ω to 175 Ω)
Impedance Range	20 Ω to 200 Ω
Battery	Non-rechargeable (12V DC)
Operating Temperature	0 °C to 40 °C
Operating Humidity	30 % to 95 %
Dimensions	303 x 216 x 89 mm
Weight	2 Kgs



Features :

• Simple 3-step defibrillation process
• Dual switch-press control
• Max. discharge energy up to 200 J
• Up to 20 distinct voice prompts
• Lock-out protection facility
• LED visual indicators

Applications :

Used in various mass transit locations like Airports, Train stations, high traffic public places or outdoor activity parks, gyms, arenas, community centers as well as in public events to handle sudden cardiac emergency situations.
