Overview

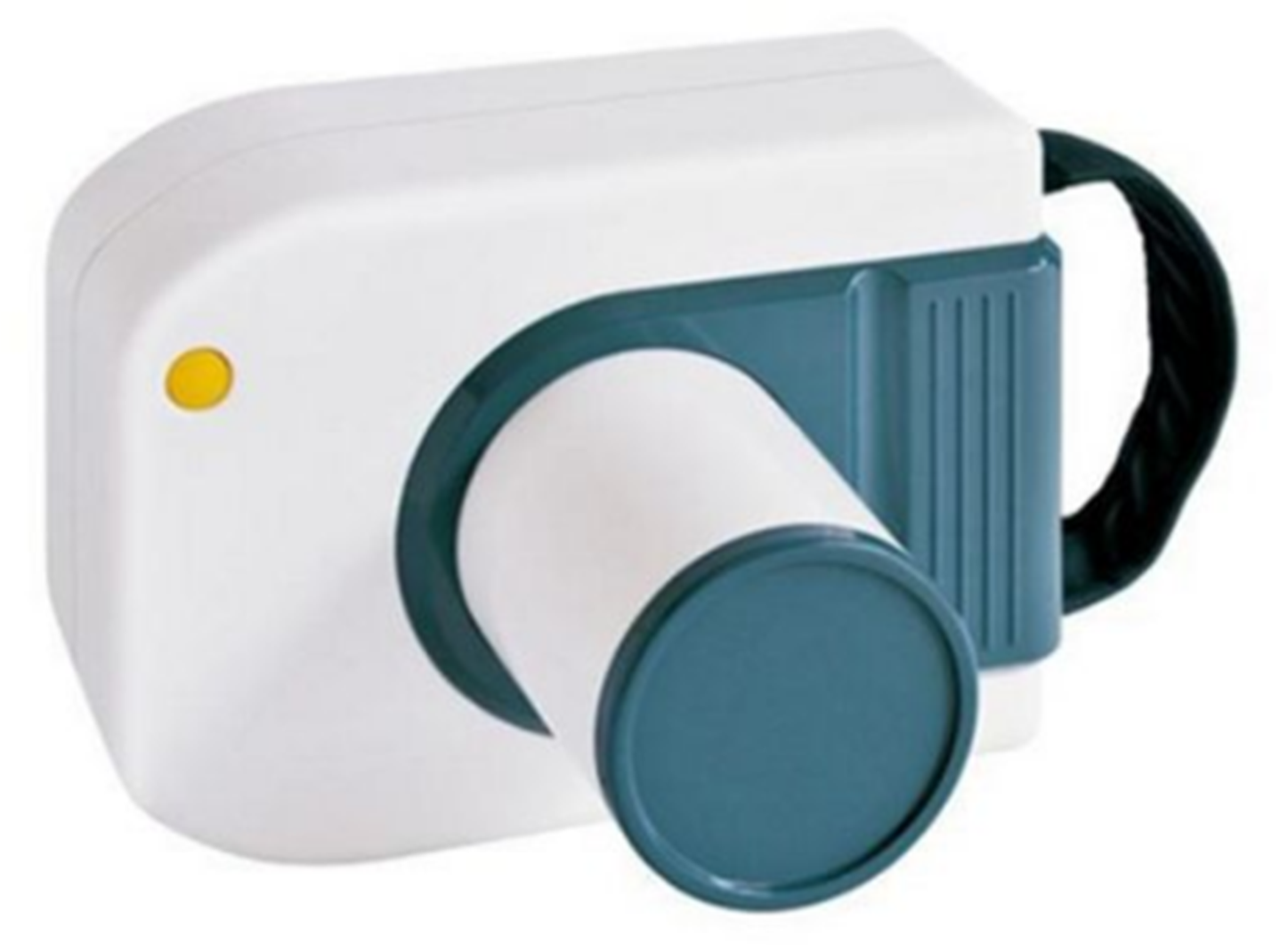

Dental X-ray KDX-A200 is a portable intra-oral imaging modality which uses high frequency DC X-ray generators for good radiographic contrast at minimal dosage. Graphic LCD screen displays various indicative parameters for exposure control and alarms. Touch key user-interface for customized exposure. Incorporated components have vacuum insulation and stereotype sealed protection for stable and extended life of equipment.

Specifications :

Tube Voltage	60 kV
Tube Current	1 mA
Exposure Time	0.02 s – 2 s
Tube Focus	0.3 x 0.3 mm
Configuration	Portable
Battery	DC : 14.8 V, 6400 mA
Charger Output	DC : 16.8 V
Charger Input	AC 100 V-240 V ±10 %
Frequency	30 kHz
Power Rating	60 VA
SSD (Source Skin Distance)	130 mm
Dimension	138 x 165 x 185 mm
Weight	2.2 Kgs



Features :

• Micro focus technology
• Digital control panel
• Accurate and quick imaging
• Pneumatic controlled seat – mobile or fixed
• Trusted tube quality

Applications :

Used in dental clinics for dental X-ray imaging to reveal impacted teeth, advanced periodontal disease, sinusitis and to plan treatment dentures, braces, extractions or implants
