Overview

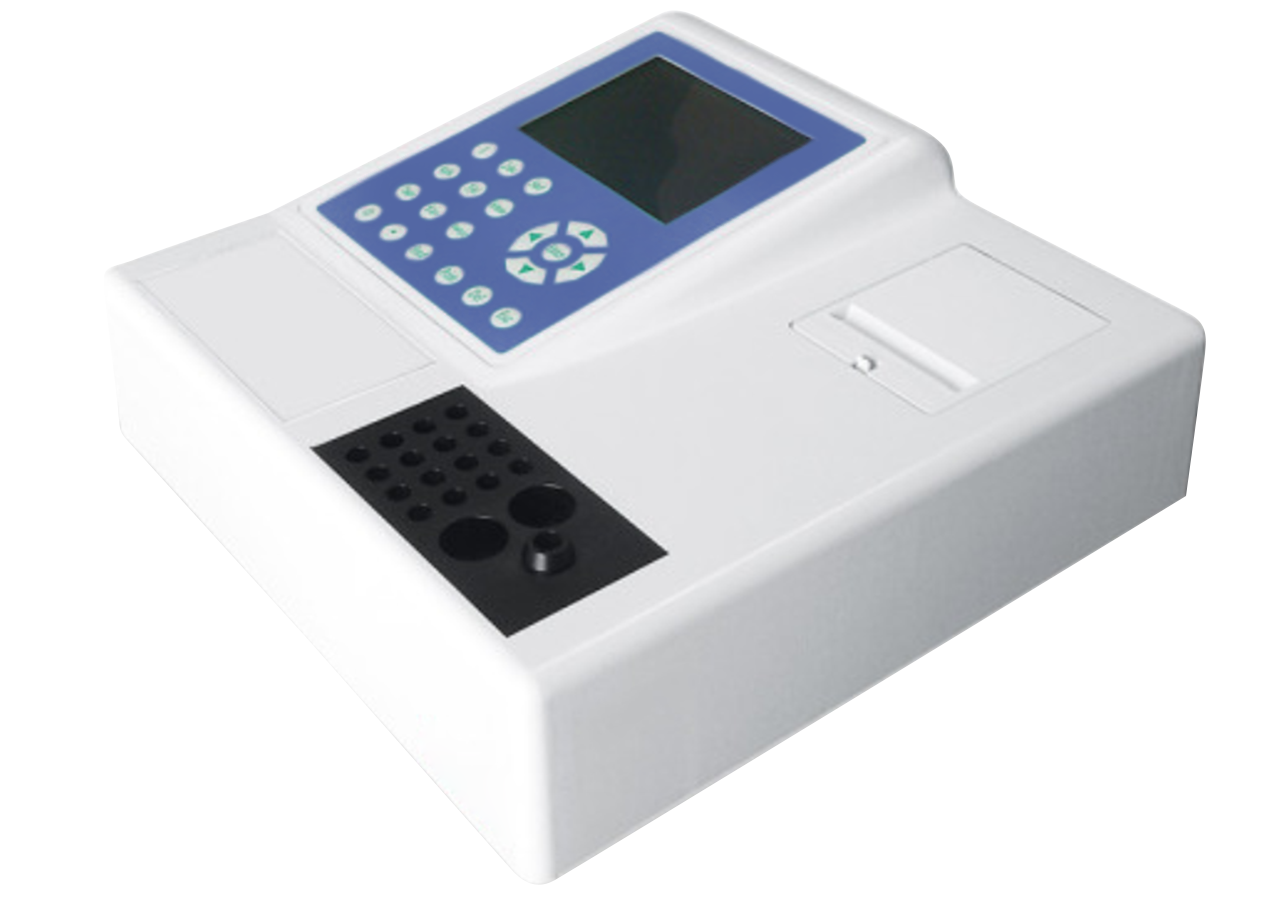

Coagulation Analyser KCG-A100 is a high-performance semi-automated benchtop coagulation analyser. Incorporated automatic stirring system speeds up and aids in sample preparation. Reaction cuvette pre-heating saves time and reduces work-effort. Large storage memory and intuitive navigation allows quick review of previous result values.

Specifications :

Number of channels	Single channel
Test parameters	PT [Prothrombin Time] APTT [Activated Partial Thromboplastin Time] TT [Thrombin Time] FBG [Fibrinogen Concentration] Clotting Factors
Measurement method	Photometric analysis
Display	Back-illuminated LCD
Reagent volume	50 µl ~ 100µl
Pre-heat temperature	37 ± 0.2 °C
Capacity	Sample: 16 positions Reagent: 2 positions
Storage	Large storage memory and user-friendly review system
Output interface	Built-in thermal printer
Power supply	110V / 60Hz 220V / 50Hz
Stirring	Automated magnetic stirring motor for cuvette
Dimension	310 X 200 X 280 mm
Weight	4.5 Kgs



Features :

• Single channel analysis
• Pre-programmed test menu for single assays
• Lower reagent consumption
• Automated storage and printout
• Preparation and incubation for samples/ reagents
• Up to 7 point calibration or reference curves

Applications :

Used in small to medium sized pathological diagnostic laboratories, small or private hospital laboratories with wide range of applications in Hemostasis for diagnostic evaluation to test for Thrombo-embolytic disease, Thrombocytopenia, Impaired liver function or Hemophilia.
