Overview

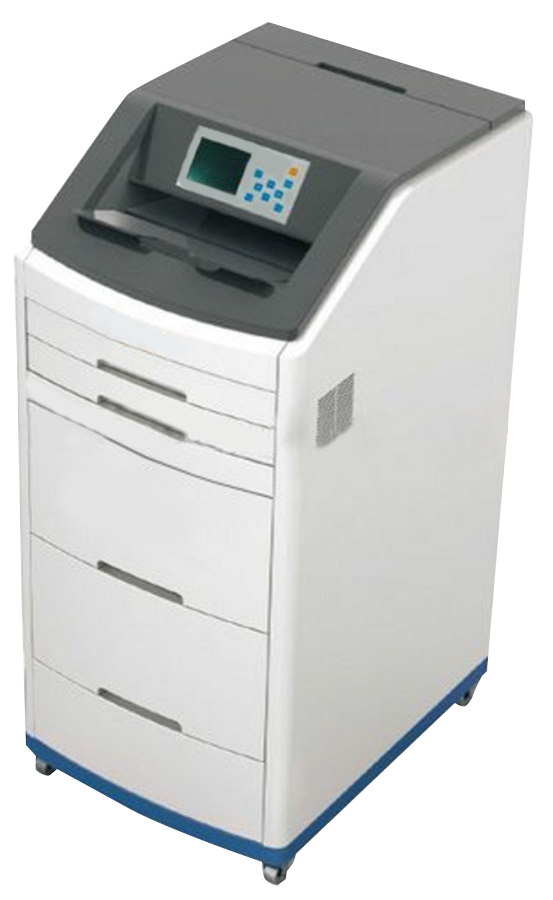

X-ray Film Processor KXP-A100 is a medical thermal imaging processor. It enables processing of high-quality image in DICOM 3.0 ensuring optimum image quality. Integrated with in-built program to process 4 most common film sizes used in conventional radiography.

Specifications :

Geometrical	320 dpi (12.6 pixel/mm)
Processor	Intel
Interface	TCP/IP
Gray Scale Resolution	12 bit ( 4096 gradation )
Film type	Medical thermal ( blue base )
Film size	8”×10” 10”×12” 11”×14” 14”×17”
Film output	80 sheets/hour (14”×17”) 100 sheets/hour (8”×10”)
Film output tray	1 output tray,50 sheets/tray
Film supply tray	2 supply trays,100 sheets/tray
Film input cassette	Prepackaged in factory sealed
Port	10/100 Base – T Ethernet (RJ-45)
Image Format	DICOM 3.0
Image Quality	Built-in densitometer automatic calibration
Image Control	Contrast/gray scale/polar/rotate/saturation/scale
Humidity	10 % ~ 80 %
Working humidity	10 % ~ 70 %
Working temperature	15 °C ~ 30 °C
Optimum temperature	22.2 °C
Storage temperature	-22 °C ~ 50 °C
Control Panel	LCD backlight display
Key switch	Power supply and menu navigation buttons
Internal Memory	2 GB
Disk capacity	320 GB
Power	Auto ranging 100 V ~ 240 V ; 50 Hz / 60 Hz Printing 6000 W Standby 75 W
Dimensions	556 × 770 × 1250 mm
Weight	87.1 kgs



Applications :

Used in Diagnostic radiology for development and digitization of X-ray films in CT, MRI, PACS, Dental radiography, Nuclear medicine and other medical imaging applications.
