Overview

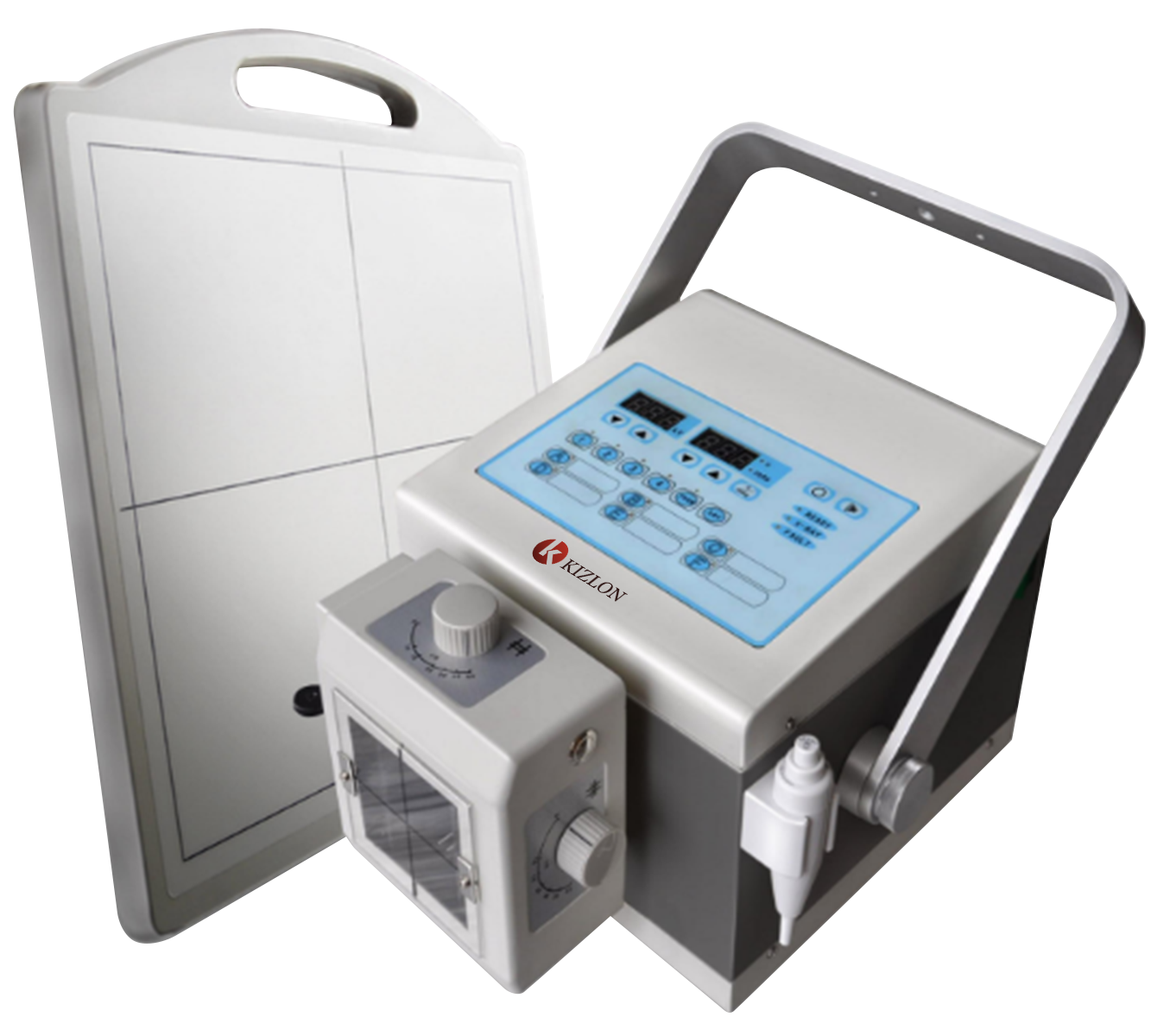

Veterinary X-ray Machine KVX-A100 is a portable, ultra-compact high frequency digital radiography system specifically designed for equine, bovine, exotic and multi-species x-ray imaging practices. X-ray assembly features accurate simulation-control, precise tube-voltage and tube-current with various pre-defined anatomical x-ray positioning con suitable for easy orientation and imaging.

Specifications :

Max Output Power	4 kW
Nominal Power	100 kV, 40mA, 0.1 s, 4 kW
Input Power	220 V ± 2 V (AC); 50/60 Hz
Tube Focus-spot	0.6 / 1.5 mm
Digital Detectors	Limit Resolution : 3.6 LP/mm Pixel Area : 427 × 356 mm A/D conversion : 14 bit
Power Capacity	≥ 5 kVA
Frequency	≥ 40 kHz
Tube voltage (kV Range)	40 kV ─ 110 kV
Tube current (mA Range)	36 mA ─ 70 mA
Radiographic density (mAs Range)	1 mAs ─ 200 mAs
Time Range	0.04 s ─ 3.2 s
Inner Resistance	≤ 0.50
Anode Heat Capacity	76 kHU
X-Ray Pre-set Positioning	48 anatomical positions
Dimensions	290 × 260 × 230 mm
Weight	18.8 Kgs



Features :

• Digital double loop technology
• Auto-test and failure self-protection facility
• Digital LED display for tube-voltage and tube-current settings
• Concise X-ray focusing
• Consistent Image quality

Applications :

Used in outdoor or indoor radiography practices for diagnostic X-ray imaging in the pet clinic, rescue diagnosis, horse-stable or barn or cattle-shed for on-the-go X-ray imaging practices.
