Overview

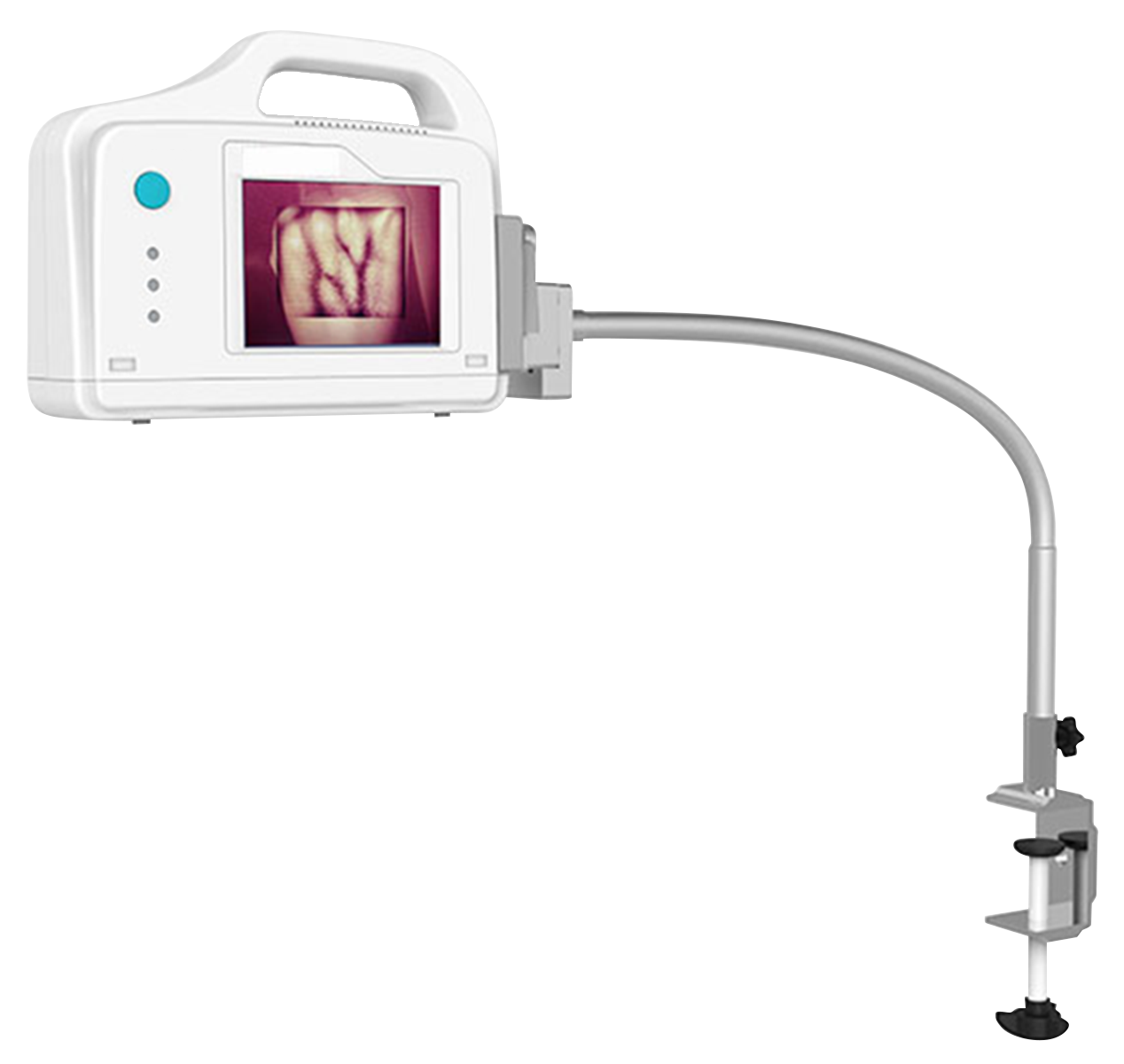

Vein Illuminator KVI-A100 is a portable illumination unit with NIR for projection of vein image on superficial skin. It allows quick and precise vein display which is useful for infants (newborns), pediatricians and adults. Provides significant help for patients whose vein access becomes a challenge such as dark skin, hairy skin, swollen tissues, obese, old age etc.

Specifications :

Display Mode	Screen
Wavelength (Infrared)	850 nm
Image Resolution	640 x 480 Pixel
Optimal Imaging Distance	210 mm ± 30 mm
Power Source	3000 mAh
Source Voltage	DC 7.4 V
Dimension	242 x 182 x 70 mm
Weight	950 gms



Features :

• Large display screen for vein viewing
• Provides real time accurate images
• Adjustable height antennae
• Improves site selection (cursor locator)
• Reduces discomfort

Applications :

Used in hospitals, clinical labs, blood donation camps, rehabilitation department, academic institutions and others for intravenous access and blood collection
