Overview

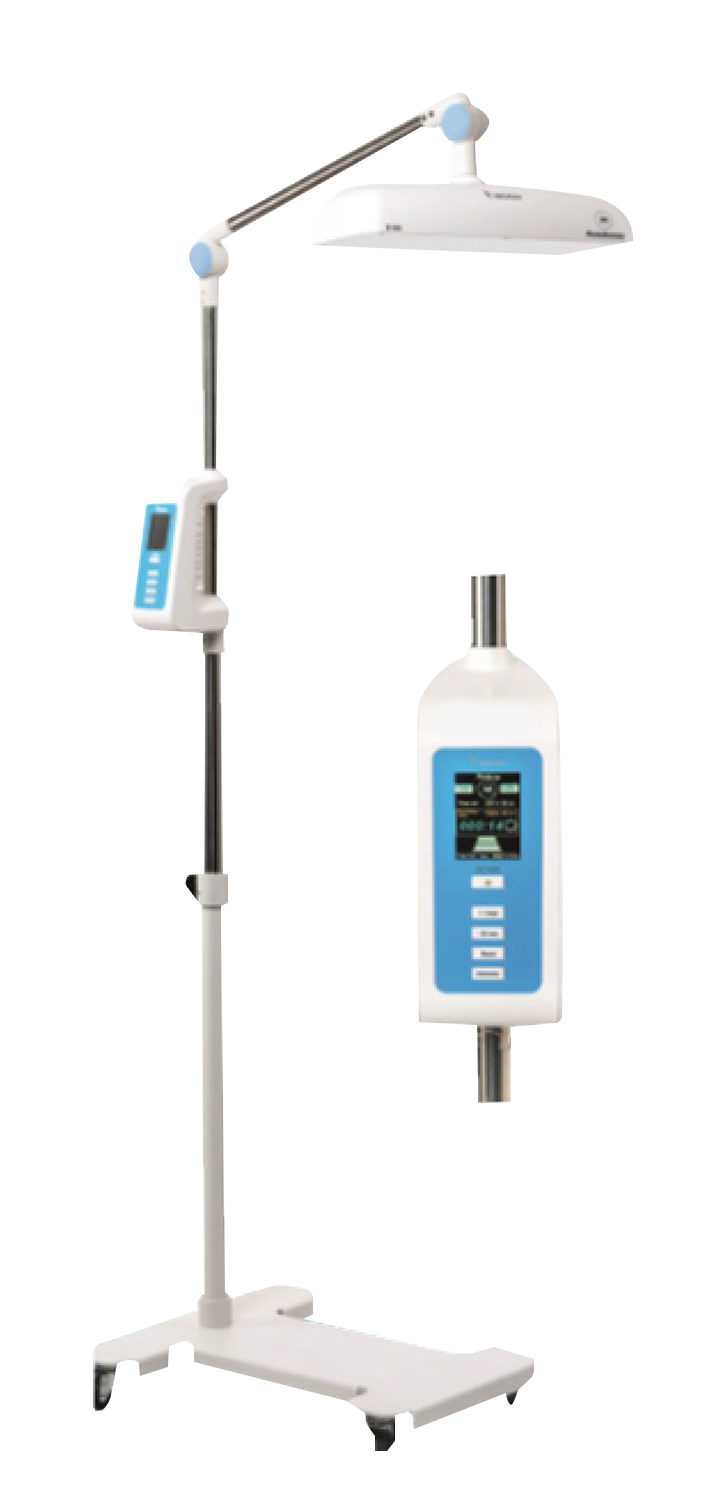

LED Phototherapy unit KPT-A100 is a mobile high intensity infant phototherapy stand unit. Incorporated optically recessed LED design allows focused, high intensity and uniform light distribution. Digital LCD control panel operates the phototherapy light intensity to deliver consistent and controlled cold light therapy for optimal treatment efficacy.

Specifications :

Light Source	8 Blue LED lights
Wavelength	450 to 475nm
LED Lamp-life	1,00,000 hours
Intensity Control	Low : 25 ~ 35 μW /cm2/nm High : 35 ~ 55 μW /cm2/nm
Display Size	2.4" TFT Color LCD
Display Parameter	Treatment time, Total used time
Timer	30 min to 999 hrs
Effective Exposure Area	400 x 200 mm
Intensity Tolerance	±10% over 6 hours
Stand Height	740 mm ~ 1180 mm
Operational Temperature	10°C ~ 40°C
Operational Humidity	5 % ~ 85 %
Audible Noise	< 60 dB
Head Source Dimensions	210 x 340 x 75 mm
Power	100 ~ 240V (50/60Hz)
Weight	13 Kgs



Features :

• Uniform Light distribution
• Safe LED light source
• Adjustable stand height
• Tilt-able source head

Applications :

Used in Nursing homes, Maternity wards, NICU for primary treatment of new born jaundice.
