Overview

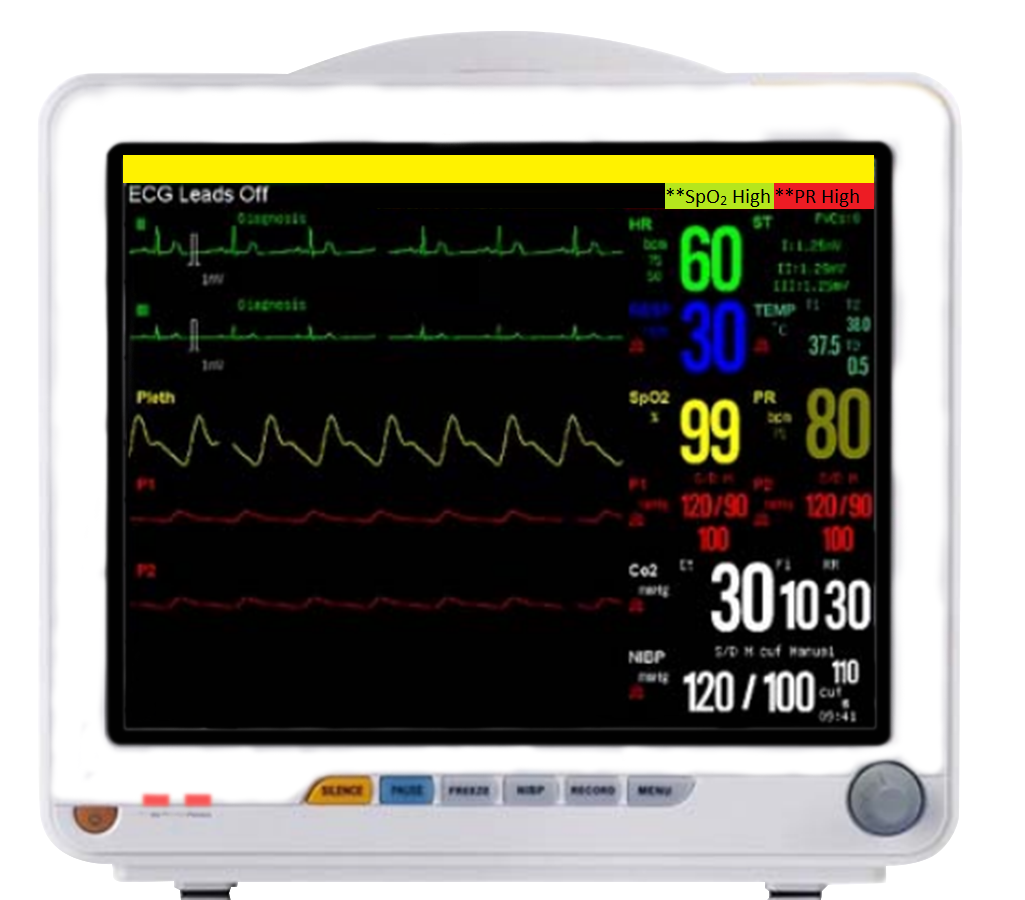

Multi-para Monitor KPM-B100 is a pre-configured bedside monitor equipped with 12.1-inch screen display with 9 waveforms. Advanced capabilities like ECG analysis, OxyCRG dynamic, calculation of drug concentration and trend reporting improves utility and user convenience. Multi-optional display of monitor profiles enables easy to read screen from across the room.

Specifications :

Standard Parameter	5‐lead ECG, RESP, HR, NIBP, SpO2(F‐5), 1‐TEMP, PR
Patient Groups	Neonate, Pediatric, Adults
Trace	9 waveform (ECG,SpO2, RESP)
ECG Lead Mode	5–lead (R, L, F, N, C) for leads I, II, III, V, aVR, aVF, aVL
ECG Waveform	3 and 7 channel selectable
ECG Gain selection	0.5mm/mv 1mm/mv 2mm/mv
ECG Sweep Speed	12.5 mm/s 25 mm/s 50 mm/s
Heart Rate range	Adult : 15 ~ 300 bpm Neonate /Pediatric : 15 bpm ~ 350 bpm Alarm range : 15 ~ 350 bpm
ECG Accuracy	+1 bpm
ECG Resolution	1 bpm
Protection	withstands 4000VAC/50 voltage isolation
S‐T segment analysis	Range : -2.0 mV ~ +2.0 mV Accuracy: ‐0.8mV ~ +0.8mv Error: +0.02Mv
Scaling	1mv, +3%
SpO2 Measurement range	0% ~ 100% Alarm range : 0% ~ 100%
SpO2 Accuracy	±2 % (70 % – 100 %) 0 – 69% unspecified
SpO2 Pulse Rate	Range : 20bpm ~ 300bpm Resolution: 1bpm Error: +1bpm
NIBP Method	Digital Automatic Oscillometric
NIBP Operation Mode	Manual/Automatic/Continuous for Systolic, Diastolic and Mean
Auto Measurement	Adjustable Duration : 1 ~ 480 mins
Range Of Systolic Pressure	Adult: 40 ~ 270mmHg Pediatric: 40 ~ 220mmHg Neonate: 40 ~ 135 mmHg
Range Of Diastolic Pressure	Adult: 10 ~ 215 mmHg Pediatric: 10 ~ 150 mmHg Neonate :10 ~ 100 mmHg
Over‐pressure Protection	Double safety protection
Respiratory Method	Thoracic impedance
Respiratory Measurement range	Adult: 7 ~ 120 rpm Neonate/Pediatric: 7 ~ 150 rpm
Apnea Alarm	10s ~ 40s
Respiratory Resolution	1 rpm
Respiratory Accuracy	±2 bpm
Temp Measurement range	5 ℃ ~ 50 ℃
Average Measuring Time	< 10 sec
Temp Resolution	0.1℃
Temp Accuracy	± 0.1℃
Display	12.1’’color TFT
Resolution	800 x 600 dot pixels
Trend	5 s/piece, 8 hours 5min/piece, 1000 hours
Alarm	User‐adjustable 3‐level Audio-visual alarm.
Safety Standard	Class I, type CF
Working Temperature	0 ~ 40℃
Relative Humidity	≤ 85 %
Power Supply	AC 100 ‐ 240 V, 50/60 Hz
Battery	Rechargeable Lead acid cell, 12 V/4 Ah
Storage	NIBP : 1000 groups Alarms : 200 groups Holographic waveform : 1 hour
Dimension	280 × 420 × 480 mm
Weight	5 Kgs



Features :

• SpO₂: Pitch tone variation and drug dose calculation
• Multi-optional monitor profile display
• Flexible design: Wall-Mountable/Portable
• Suitable for adults, pediatric and neonatal care
• 2/ 4‐IBP (Invasive Blood Pressure - Optional)
• EtCO₂ (Capnography - Optional)
• FM, TOCO (Fetal Monitoring - Optional)
• Nellcore SpO₂ (Optional)
• BIS (Optional)
• ICG/CO, ETCO₂ (Optional)
• Sun Tech NIBP (Optional)
• VGA, WIFI (Optional)

Applications :

Used in hospitals general wards, critical care units, private wards, post operating room, as well as for children wards for continuous recovery monitoring.
