Overview

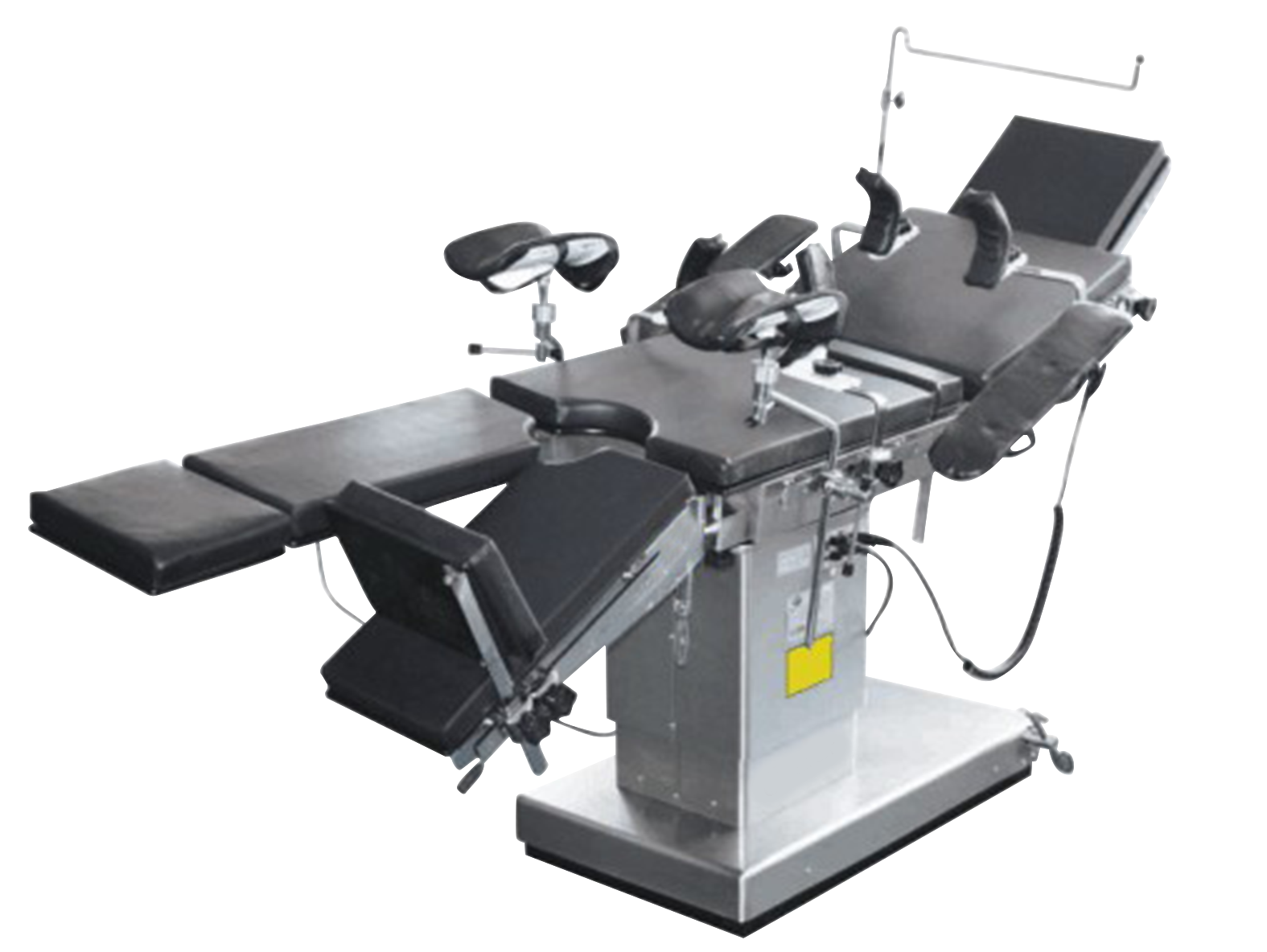

Operating Table KOT-A101 is a table top unit made up of double decker plastic plate used for surgical procedures. X-ray examination during operation is possible. Foot section can be positioned perpendicular to the leg section and is detachable. Raising, tilting and bending operation are controlled electrically.

Specifications :

Length	2100 mm
Width	480 mm
Adjustable height (Min to Max)	750 to 1000 mm
Trendelenburg	≥ 25 °
Reverse Trendelenburg	≥ 25 °
Lateral tilt	≥ 15 °
Head section folds upward	≥ 45 °
Head section folds downward	≥ 90 °
Back section fold upward	≥ 45 °
Back section fold downward	≥ 15 °
Leg section opened	≥ 90 °
Kidney bridge elevation	≥ 100 mm
Power supply	220 V (AC) ± 10 % ; 50 Hz



Features :

• Adjustable height
• Freely raised, lowered and fixed within 250mm
• Trendelenburg and lateral tilt
• Head and leg section folding
• Back section folding

Applications :

Used in hospitals, operating room to carry out surgeries on patients.
