Overview

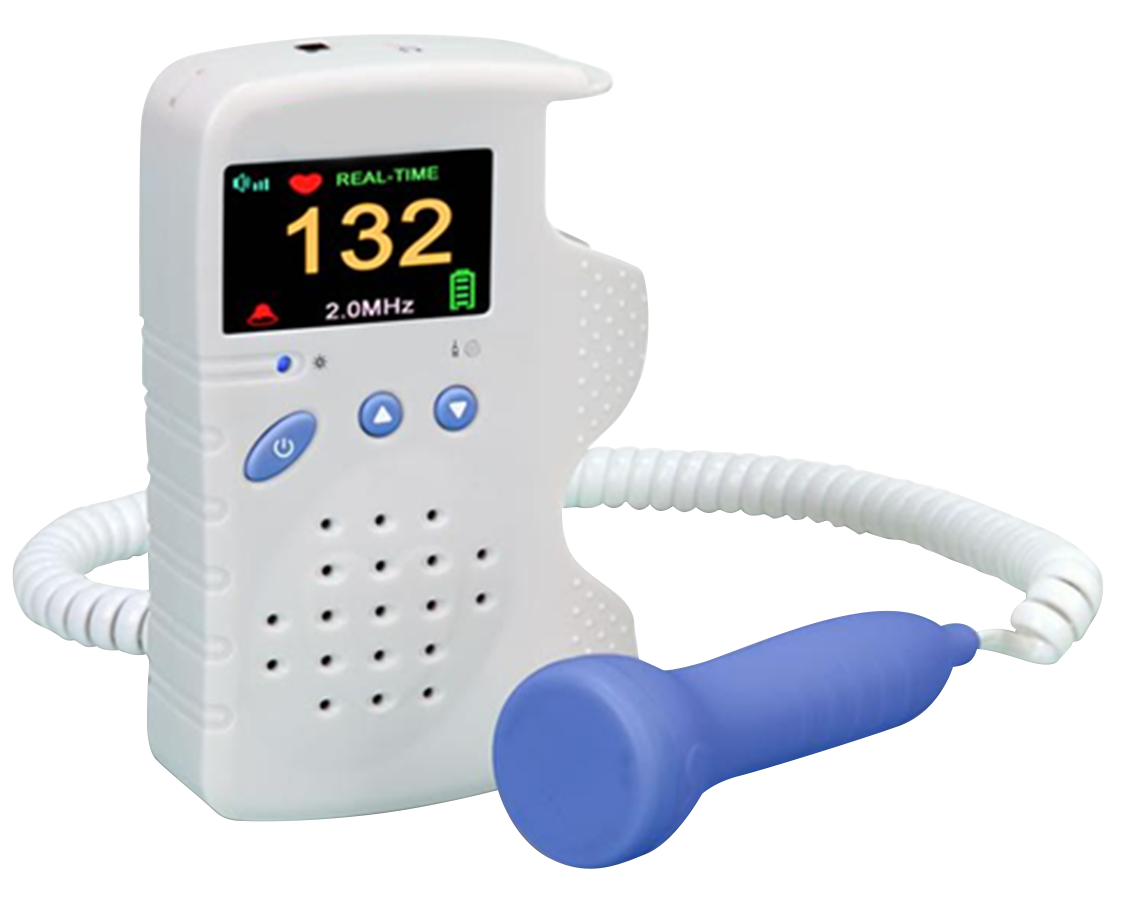

Fetal Doppler KFD-A101 is a hand held ultrasound doppler with heart-rate display and audio output. Doppler probe ensures increased sensitivity with high fidelity. LCD display indicates fetal heart rate with graphs, volume and battery status. Built-in loudspeaker enables clear audibility of fetal heart sounds.

Specifications :

Ultrasound frequency	2 MHz
Ultrasound Intensity	<10mW/cm2
Screen	Color LCD
Display	FHR and curve
FHR Measuring range	50 ~ 240 bpm
Battery	Option A Option B 1.5 V AA battery Ni-MH rechargeable battery
Power consumption	<1 W
FHR resolution	1 bpm
FHR accuracy	± 1 bpm
Dimension	135 × 95 × 35 mm
Weight	500 g



Features :

• High sensitivity doppler probe
  Low power consumption
  Compact battery powered operation
  Provision for earphones
• Backlit colour LCD display

Applications :

Used in gynacology clinics and obstetric department in hospitals to detect and monitor fetal heart rate for routine checkup.
