Overview

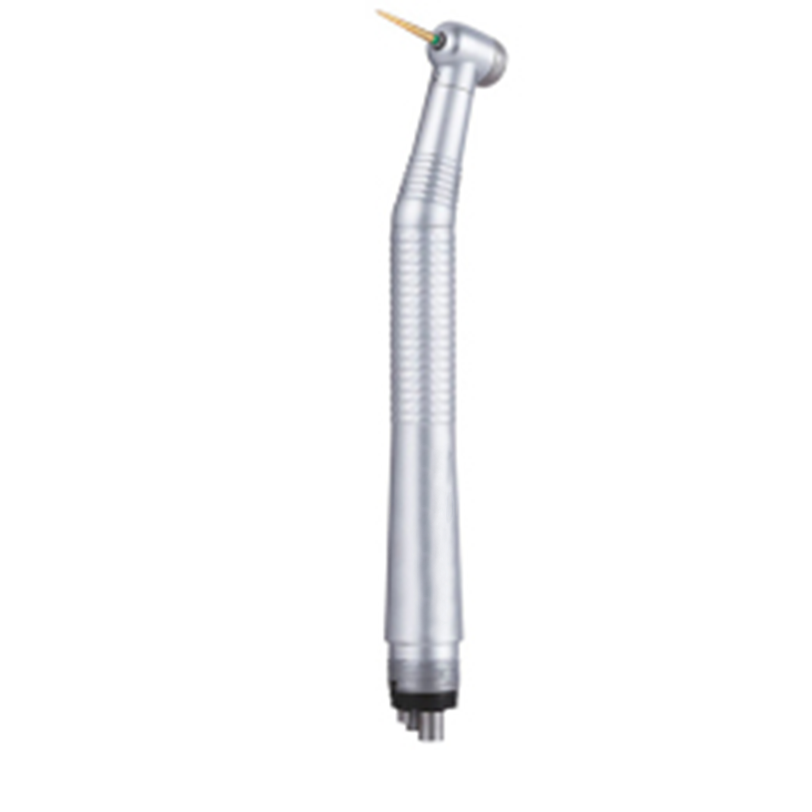

High-Speed Dental Hand piece KDH-A102 is a contra-angled air-driven drill instrument. Incorporated high precision gears with elongated nozzle allows convenient movements and strong torque speed ensures smooth cut. Single-point water spray jet results in spot-on cooling.

Specifications :

Rotation Speed	Up to 3,60,000 rpm
Torque Speed	3,00,000 rpm
Bur Insertion	Standard Push button
Gear Ratio	1:1
Drive	Air driven
Type of Bearing	Ceramic
Air Pressure	0.2 MPa ~ 0.24 MPa
Tubing Connection	2 or 4 hole
Spray	Single-point water spray
Construction	Stainless steel exterior
Applicable Bur Size	Diameter : 1.59 mm ~ 1.6 mm Length : 21 mm ~ 23 mm
Cartridge	Collect-type
Noise	< 68 dB
Weight	Approx. 180 g



Features :

• Seamless scratch-resistant surface
• Quick coupling design
• High torque
• Enhanced grip control

Applications :

Used in dental clinics for preparation of tooth for various procedures primarily suitable for cavity preparation, removal of tooth structure, margin creation and finishing restorations.
