Overview

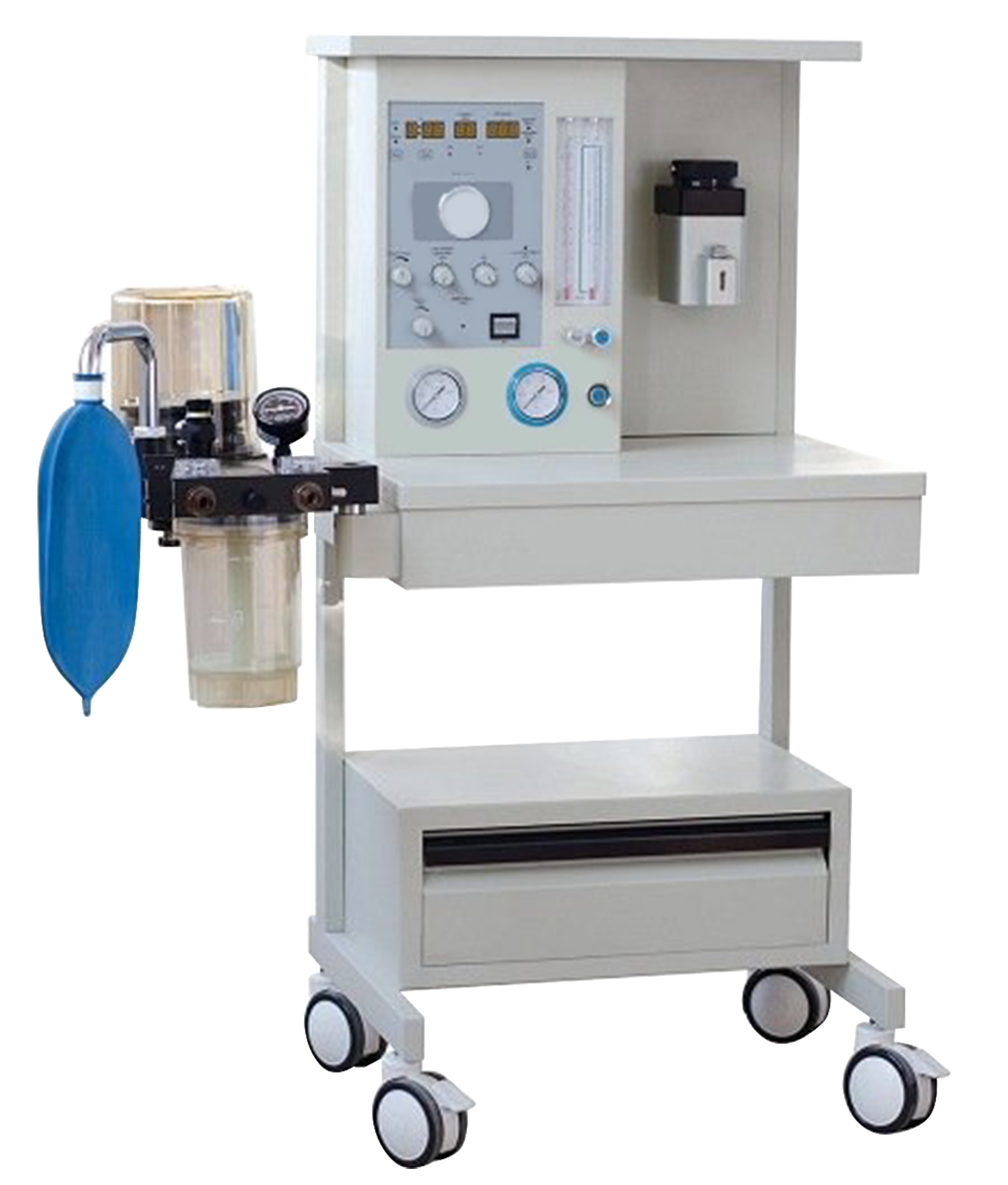

Anaesthesia System KAM-A200 is equipped with LED screen for clear display of trends, dosage rate and other setting parameters. System complies with closed, semi-closed, semi-open ventilation. Fully integrated pneumatically driven electronic system offers 3 ventilation modes with specialized CO₂ absorber based breathing systems. Comprehensive alarm indication for critical events increases patient safety.

Specifications :

Drive	Electronically controlled, pneumatic driven
Tidal Volume	0 ml ~ 1500 ml
Ventilation Modes	A/C, IPPV, SIPPV, Manual
Gas Configuration	O2, N2O
LCD Display	LED display screen
Vaporizer	Isoflurane / Enflurane
Medical Gas Pressure Range	0.32 mPa ~ 0.6 mPa
Air Pressure Range	0.32 mPa ~ 0.5 mPa
Maximum Safety Pressure	≤ 12.5 kPa
I:E Range	1:1.5 ~ 1:1.3
O2 Flush	25 L/min ~ 75 L/min
O2 Concentration	> 21%
Respiration Rate	4 bpm ~ 40 bpm
Error Tolerance	≤ ± 4 %
O2 Flow meter	0.1 L/min ~ 10 L/min
N2O Flow meter	0.1 L/min ~ 10 L/min
Pressure Safety Valve	<12.5 k Pa
Airway Pressure Alarm	Lower limit 0.2 kPa ~ 5 kPa Upper limit 0.3 kPa ~ 6 kPa
Tidal Volume Alarm	Lower limit 0 ml ~ 1800 ml Upper limit 50 ml ~ 2000 ml
Ventilation Volume Alarm	Lower limit 0 L/ml ~ 12 L/ml Upper limit > 18 L/ml
CO2 Absorber	Soda lime tank
Storage: Ambient Temperature	-15°C to 50°C
Storage: Relative Humidity	< 95%
Storage: Atmospheric Pressure	86 kPa ~ 106 kPa
Power Supply	100 V ~ 120 V AC, 50/60 Hz
Dimension	830 x 770 x 1230 mm
Weight	75 Kgs



Features :

• Pneumatic controlled flow
• Ventilation modes: A/C, IPPV, SIPPV, Manual
• Vaporizer : Enflurane/Isoflurane
• Dual flow-meter
• Suitable for adult as well as pediatric care
• Patient monitor (optional)

Applications :

Used in Surgical or Gynaecological departments to administer appropriate anaesthesia dosage at a specified rate to ensure effective sedation during surgeries and other invasive diagnostic or interventional procedures.
