Overview

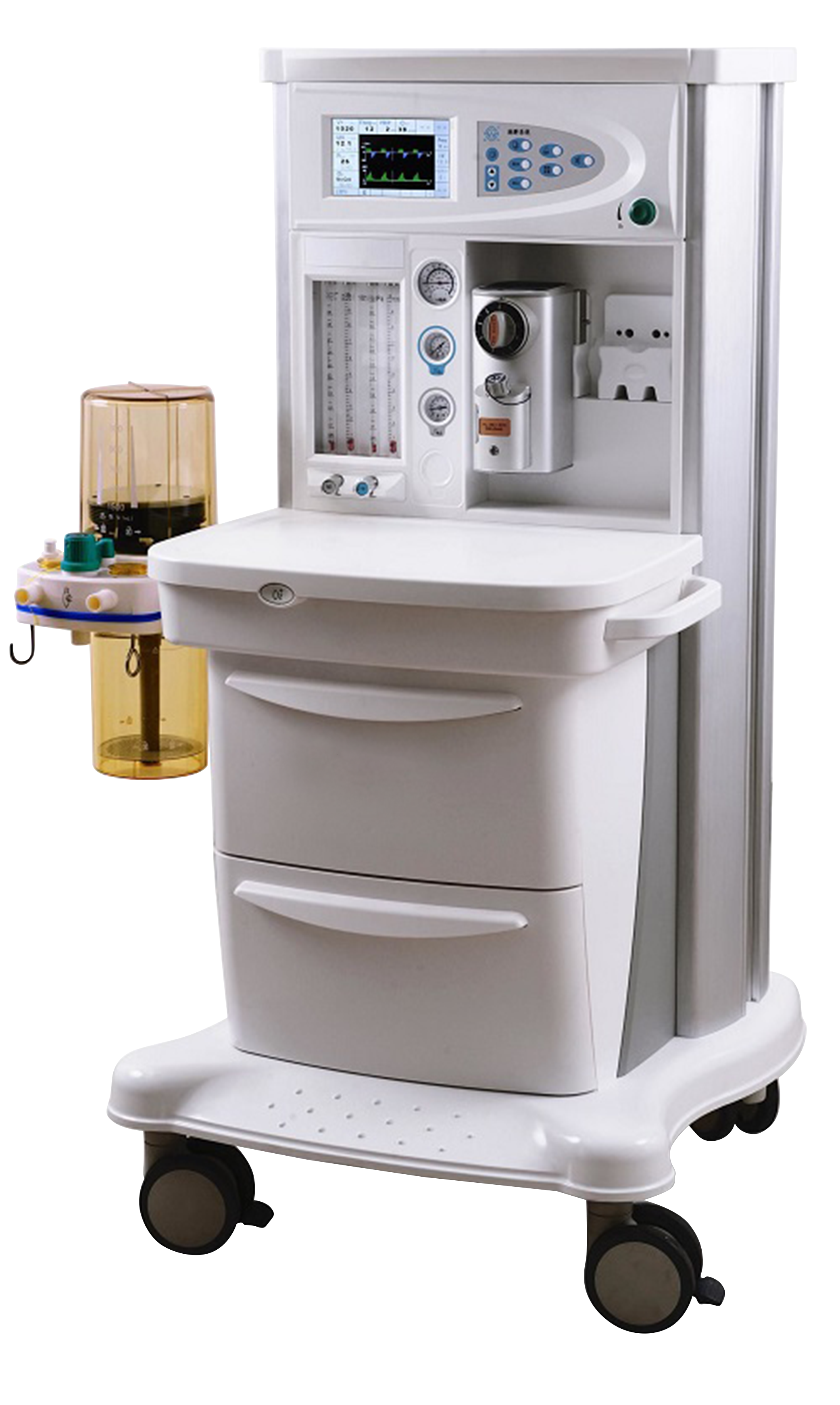

Anaesthesia System KAM-A102 is equipped with color LCD screen for clear display of trends, dosage rate and other setting parameters. Designed to suit adult as well as pediatric patients. System complies with closed, semi-closed, semi-open or assisted ventilation. Integrated system software allows real-time monitoring for loops, Paw, BPM, VT and lung compliance. Comprehensive audio-visual alarm indication for critical events increases patient safety.

Specifications :

Drive	Electronically controlled, pneumatic driven
Tidal Volume	20 ml – 1500 ml
Gas Configuration	O2, N2O
Flow Meter	Cascade, 0 L/min -10 L/min
LCD Display	7 inch LCD
Graphic Display	Waveforms of P-T, F-T
Vaporizer	Isoflurane / Enflurane / Sevoflurane / Halothane
I:E Range	4:1-1:8
Pressure Range	5 mbar - 80 mbar
P trigger Range	-20 cmH2O to 20 cmH2O
Respiration range	1 bpm - 99 bpm (1 bpm - 40 bpm under SIMV)
Calibration	Automatic
Pipeline Input	280 kPa - 600 kPa
Minute Volume	> 18 L/min
PEEP	Off 3 - 20 cm H2O
Run-time	> 30 minutes up to 2 hours
Hypoxic Safety System	N2O cut-off valve / O2 > 25%
Pressure Safety Valve	< 12.5 k Pa
Volume of CO2 absorber	1.5 L
Output Pressure	0.4 ± 0.1 mPa
Power Supply	AC 220V ± 10%, 50Hz ± 2%
Battery	Lead-acid battery 12V, 4Ah
Current	500 mA (Max)
Dimensions	700 x 850 x 1400 mm
Weight	65 Kgs



Features :

• 7 inch color LCD display
• Pneumatic controlled flow
• Ventilation modes: IPPV, SIMV, Manual, Stand-By
• Vaporizer : Double (optional)
• Auto-calibration
• Suitable for adult as well as pediatric care
• ACG outlet (optional)
• AG Scavenging system (optional)
• Yoke system (optional)
• Selectetac (optional)

Applications :

Used in Surgical or Gynaecological departments to administer appropriate anaesthesia dosage at a specified rate to ensure effective sedation during surgeries and other invasive diagnostic or interventional procedures.
